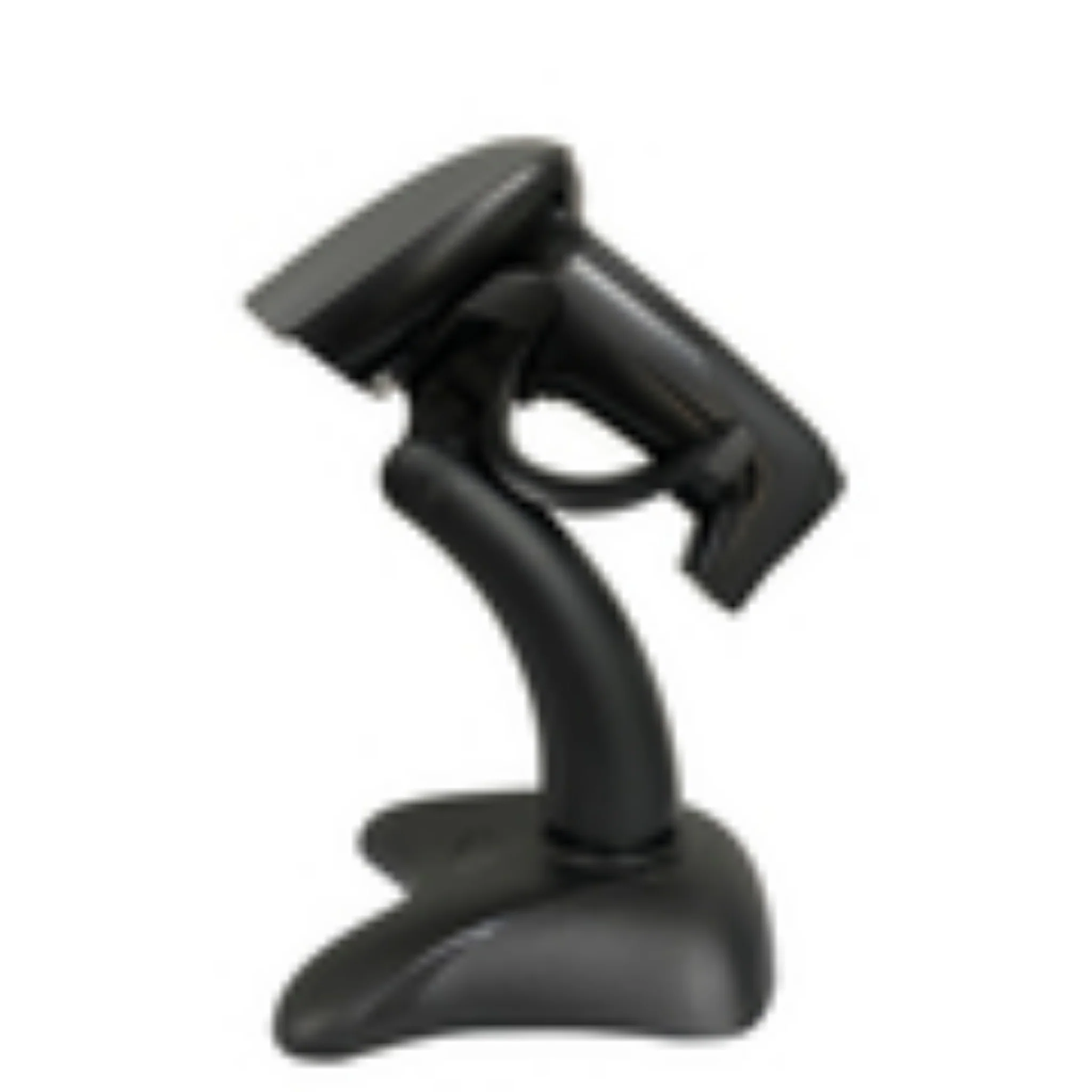

IRVINE IR-2D1580 Wired Barcode Scanner
- Model-IR-W1580(2D)
- Wired 2D Barcode Scanner
- Material ABS+PC
- Power Supply DC 5V ±5%
- Power Consumption 0.183W(standby);0.600W(working);1.025W(maximum)
- Weight 208g
- Size L*W*H:163.0 * 68.3 * 90.5(unit:mm)
- Color Black + Grey
- Interface USB;(RS232 can be customized)
- System Supported Linux,Android,Windows XP、7、8、10,MAC
- LanguageSupported
- English,Czech,French,German,Hungarian,Italian,Japanese,Spanish,Turkish
- F,Turkish Q etc.(Support International language)
- Sensor Planar CMOS sensor 640*480
- Light Source Red LED(Aiming)+White LED(lighting)
- Processor 32-bit ARM MCU
- Motion tolerance QR: 25cm/sec
- Resolution ≥4mil
- Bit Error Rate 1/5000000
- Reading Mode Image
- Trigger Mode Manual ;Continuous scanning;Auto-sensing
- Prompt Mode Buzzer, Indicator Light(LED)
- Print Contrast 25%
- Scanning Angle Roll360°,Pitch45°,Yew45°
- IP Grade IP52
- Operating Temp. 0 to 50°C / 32 to 122°F
- Storage Temp. 0 to 50°C / 32 to 122°F
- Operating Humidity 20% to 85%(No Condensation)
- Storage Humidity 20% to 85%(No Condensation)
- Code39 4.17mil(14 bits):5.5cm - 7.5cm
- QR 9.17mil(7 bits):4.5cm - 8.5cm
- Data Matrix 9.17mil(7 bits):5cm - 9cm
- Environment Parameter
- IP Grade IP52
- Operating Temp. 0 to 50°C / 32 to 122°F
- ESD Protection 15KV air discharge
- Shock Resistance 1.5m free fall on concrete surface
$31.54
IRVINE IR-2D1580 Wired Barcode Scanner—
$31.54
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
- Model-IR-W1580(2D)
- Wired 2D Barcode Scanner
- Material ABS+PC
- Power Supply DC 5V ±5%
- Power Consumption 0.183W(standby);0.600W(working);1.025W(maximum)
- Weight 208g
- Size L*W*H:163.0 * 68.3 * 90.5(unit:mm)
- Color Black + Grey
- Interface USB;(RS232 can be customized)
- System Supported Linux,Android,Windows XP、7、8、10,MAC
- LanguageSupported
- English,Czech,French,German,Hungarian,Italian,Japanese,Spanish,Turkish
- F,Turkish Q etc.(Support International language)
- Sensor Planar CMOS sensor 640*480
- Light Source Red LED(Aiming)+White LED(lighting)
- Processor 32-bit ARM MCU
- Motion tolerance QR: 25cm/sec
- Resolution ≥4mil
- Bit Error Rate 1/5000000
- Reading Mode Image
- Trigger Mode Manual ;Continuous scanning;Auto-sensing
- Prompt Mode Buzzer, Indicator Light(LED)
- Print Contrast 25%
- Scanning Angle Roll360°,Pitch45°,Yew45°
- IP Grade IP52
- Operating Temp. 0 to 50°C / 32 to 122°F
- Storage Temp. 0 to 50°C / 32 to 122°F
- Operating Humidity 20% to 85%(No Condensation)
- Storage Humidity 20% to 85%(No Condensation)
- Code39 4.17mil(14 bits):5.5cm - 7.5cm
- QR 9.17mil(7 bits):4.5cm - 8.5cm
- Data Matrix 9.17mil(7 bits):5cm - 9cm
- Environment Parameter
- IP Grade IP52
- Operating Temp. 0 to 50°C / 32 to 122°F
- ESD Protection 15KV air discharge
- Shock Resistance 1.5m free fall on concrete surface
